Follow along: Virtual Simulation Example

The program launching process along with parameter settings are all simplified and set up on the Jupyter Notebook Environment.
  • Initialization
    • Import the Virtual Environment and the Robot
    • Test the Virtual Movements
  • Navigation
(The Jetson Board used for these examples are => Jetson Nano)

Initialization

For the interactive simulation, ZetaBank provides a server upon which the simulation may take place. The connection should be through nomachine service, which would allow for headful control of the server.

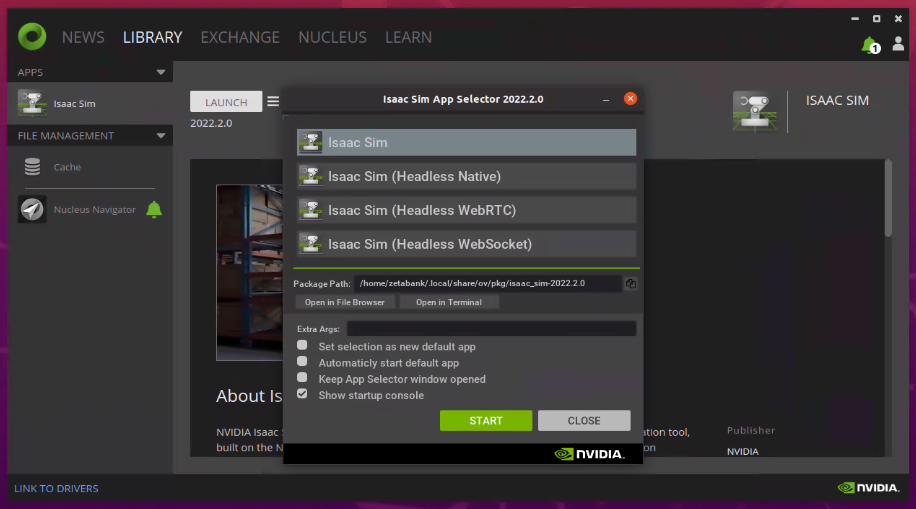

Upon the connection to the server, log onto the OmniVerse Application and access the Library to start the Isaac Sim.


Import the Virtual Environment and the Robot

The Isaac Sim application consists of viewport window in the middle (for displaying the simulation), editorial tools on the left, and other specified tools on the right and bottom sides.

  • Access the Content window and locate isaacsim_map folder. If Content window is not visible, you may activate it by accessing the dropdown menu (Window -> Browser -> Content)

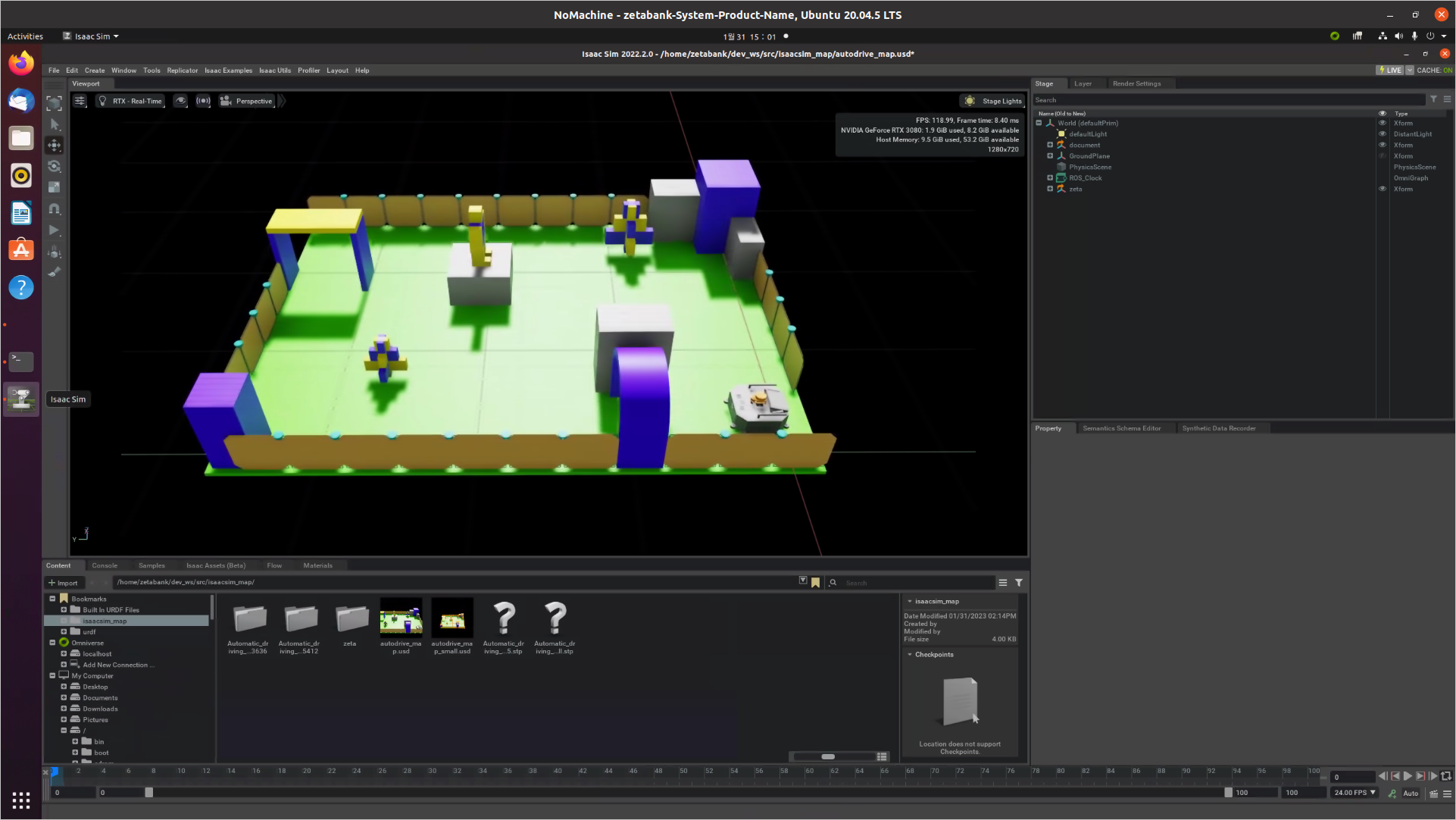

  • Double Click autodrive_map.usd file which contains the environment and the robot information to the Stage window.


Test the Virtual Movements

  • Open a new terminal and execute:

    roscore

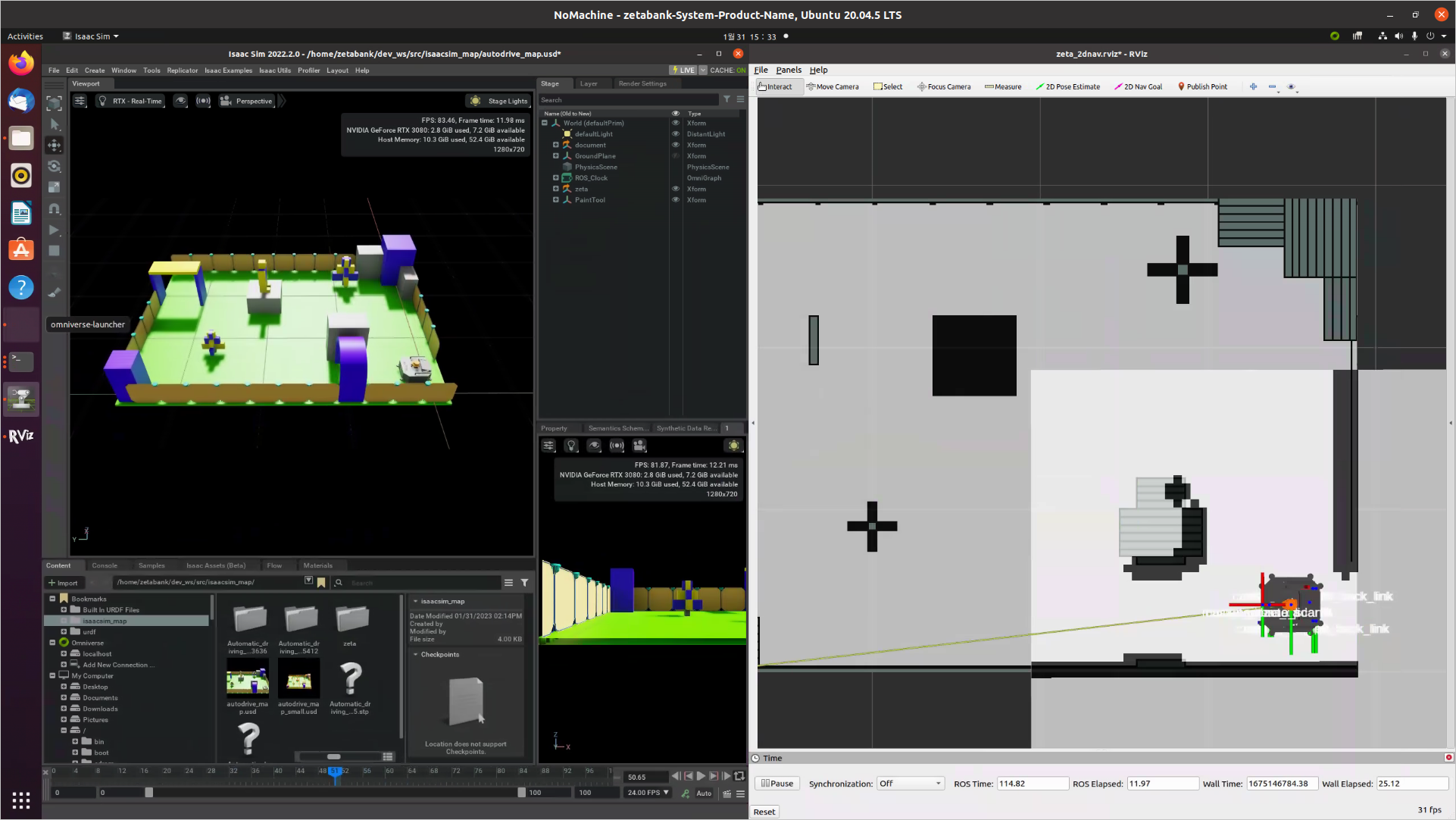

  • Within the Isaac Sim, start the simulation by pressing the play button on the left of the viewport. This will activate the interactive simulation.

  • To give movement commands to the robot, publish a movement script to the robot:

    rostopic pub /cmd_vel geometry_msgs/Twist '{linear:  {x: 0.1, y: 0.0, z: 0.0}, angular: {x: 0.0,y: 0.0,z: 0.0}}'

    The linear and angular (x, y, z) parameters indicate the linear movement on x, y, and z axes. Since our robot does not have the ability to fly, only x and y axes values are used.

    (Note) When the rostopic is published, it repeatedly publishes the commands, which causes the robot to continually repeat the same movement. Make sure to stop the robot by: 1. Stopping the rostopic 2. Initializing the linear and angular speed of the robot.

    rostopic pub /cmd_vel geometry_msgs/Twist '{linear:  {x: 0.0, y: 0.0, z: 0.0}, angular: {x: 0.0,y: 0.0,z: 0.0}}'
