※ Assembly Process

This are pictures taken during the assembly process of the Zetabot.

Jetson Nano & lidar assembly


Description

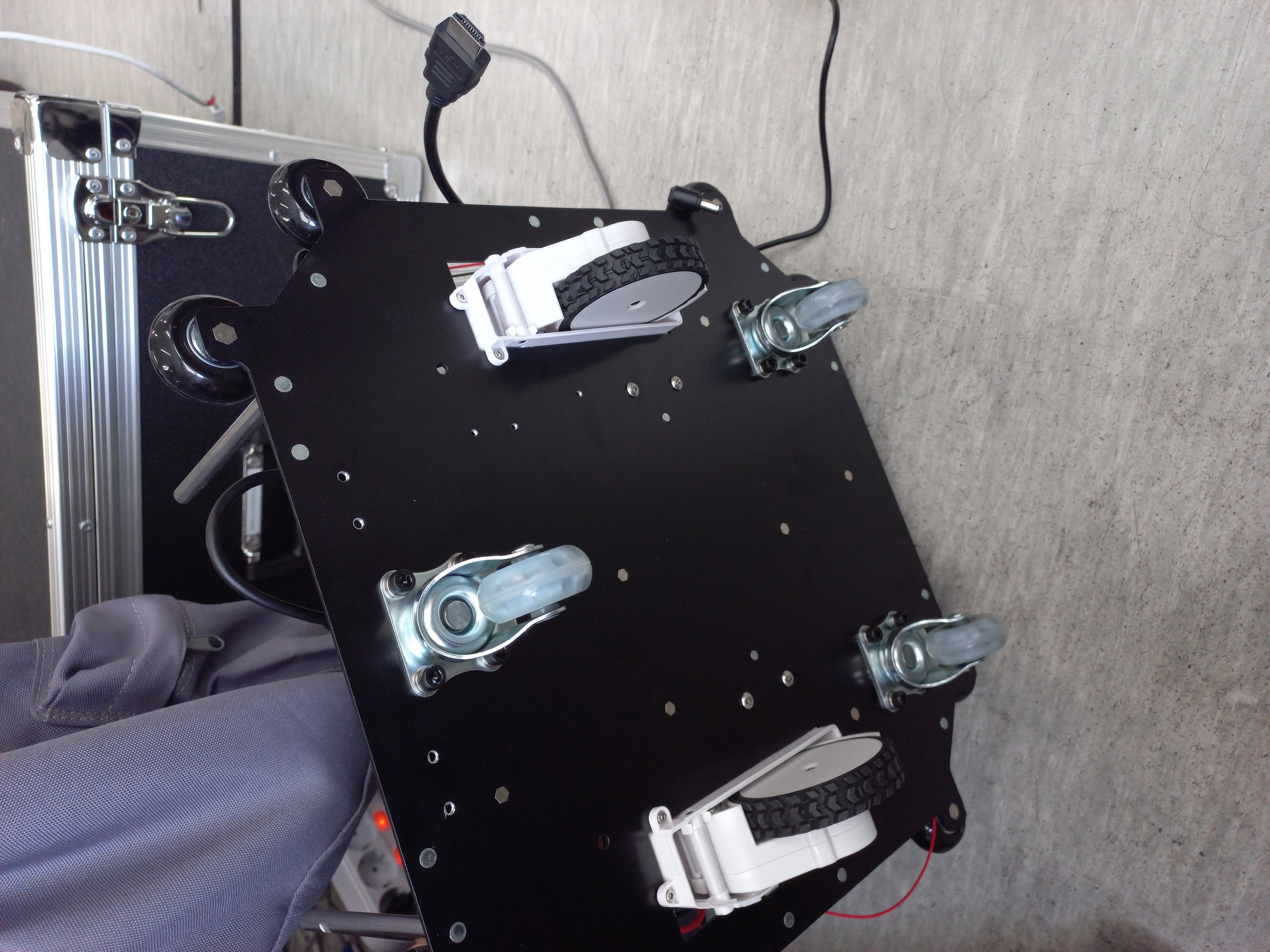

  1. The process of assembling the base.

part_2

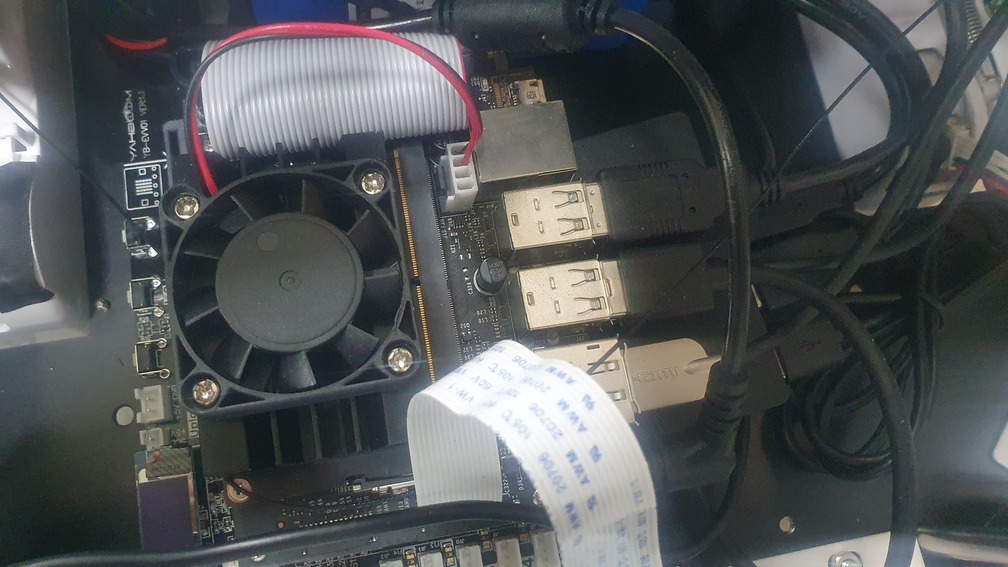

  1. This is a picture with Jetson Nano inside.

part_3

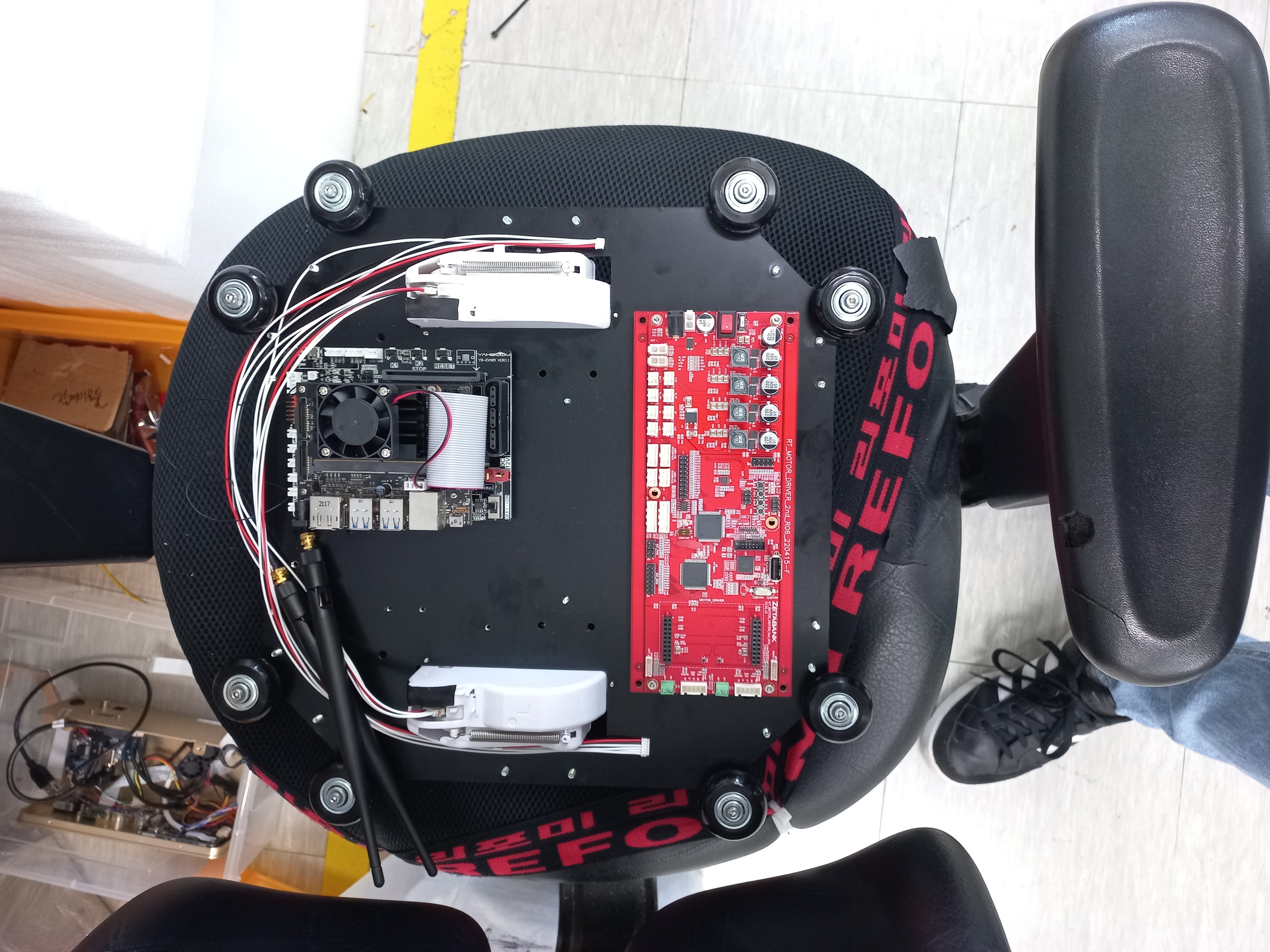

  1. The red board is the IMU board.

part_4

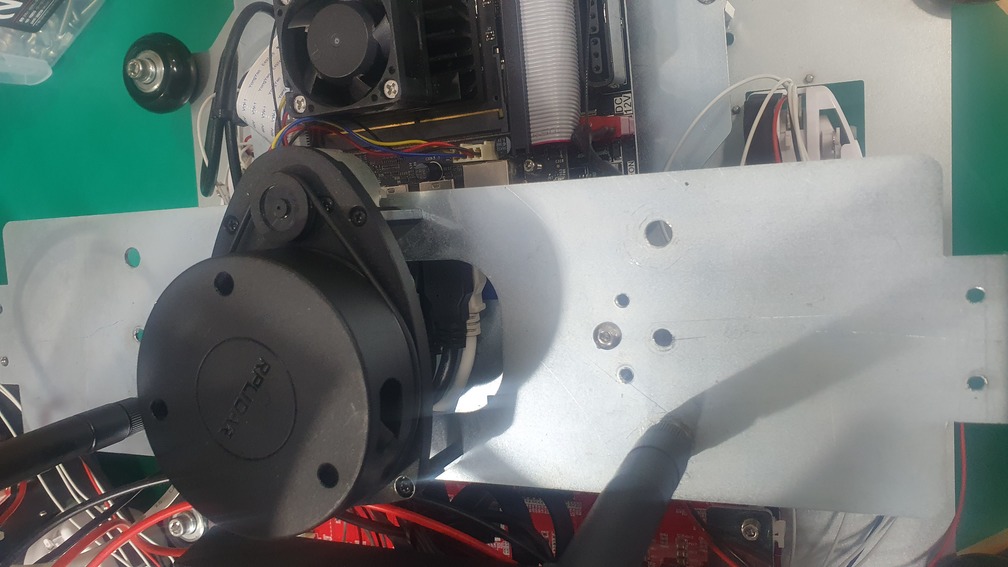

  1. This is the lidar sensor on the top of the Zetabot.

Camera, Ultrasonic Sensor, Battery Assembly


Description

part_21

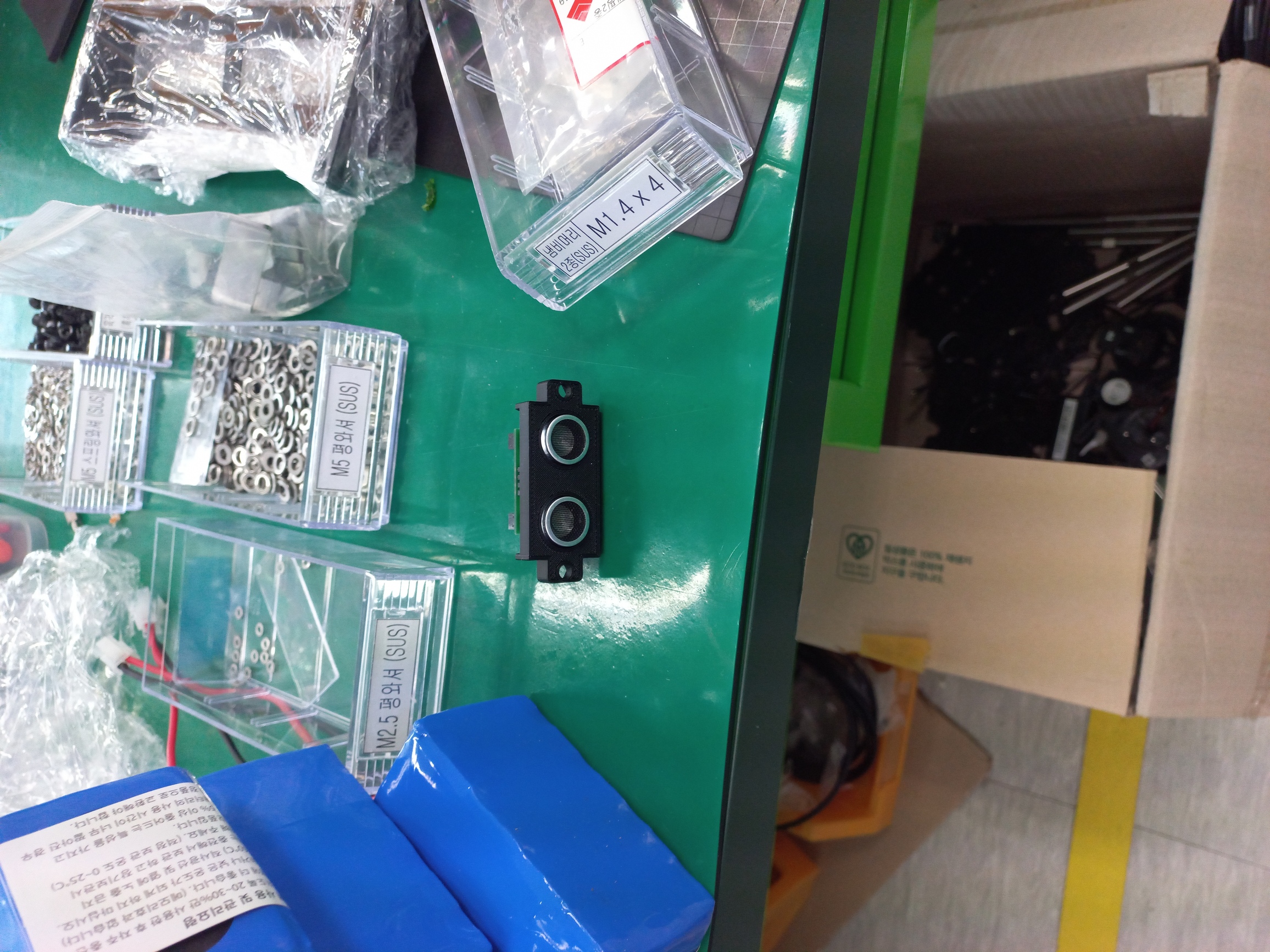

  1. This is the ultrasonic sensor. Four are attached around the Zetabot.

part_22

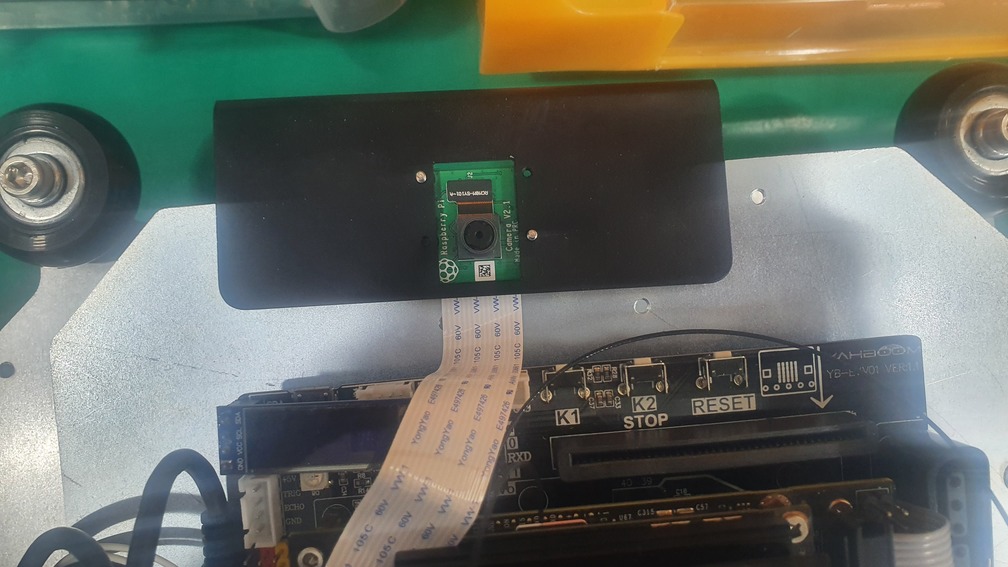

  1. This is the camera sensor. It will be attached to the front of the Zetabot.

part_23

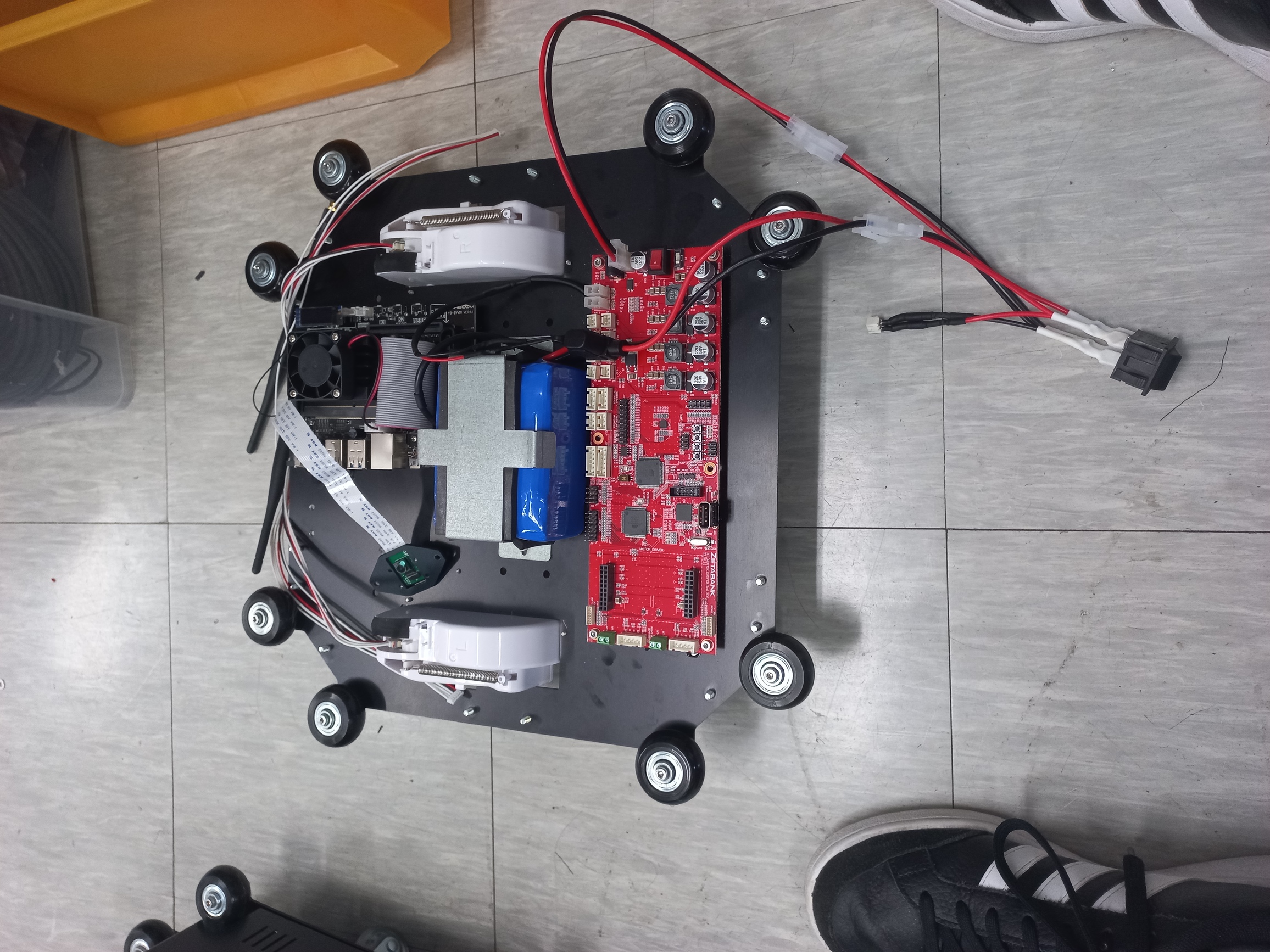

  1. Combination of all the modules described so far.

part_24

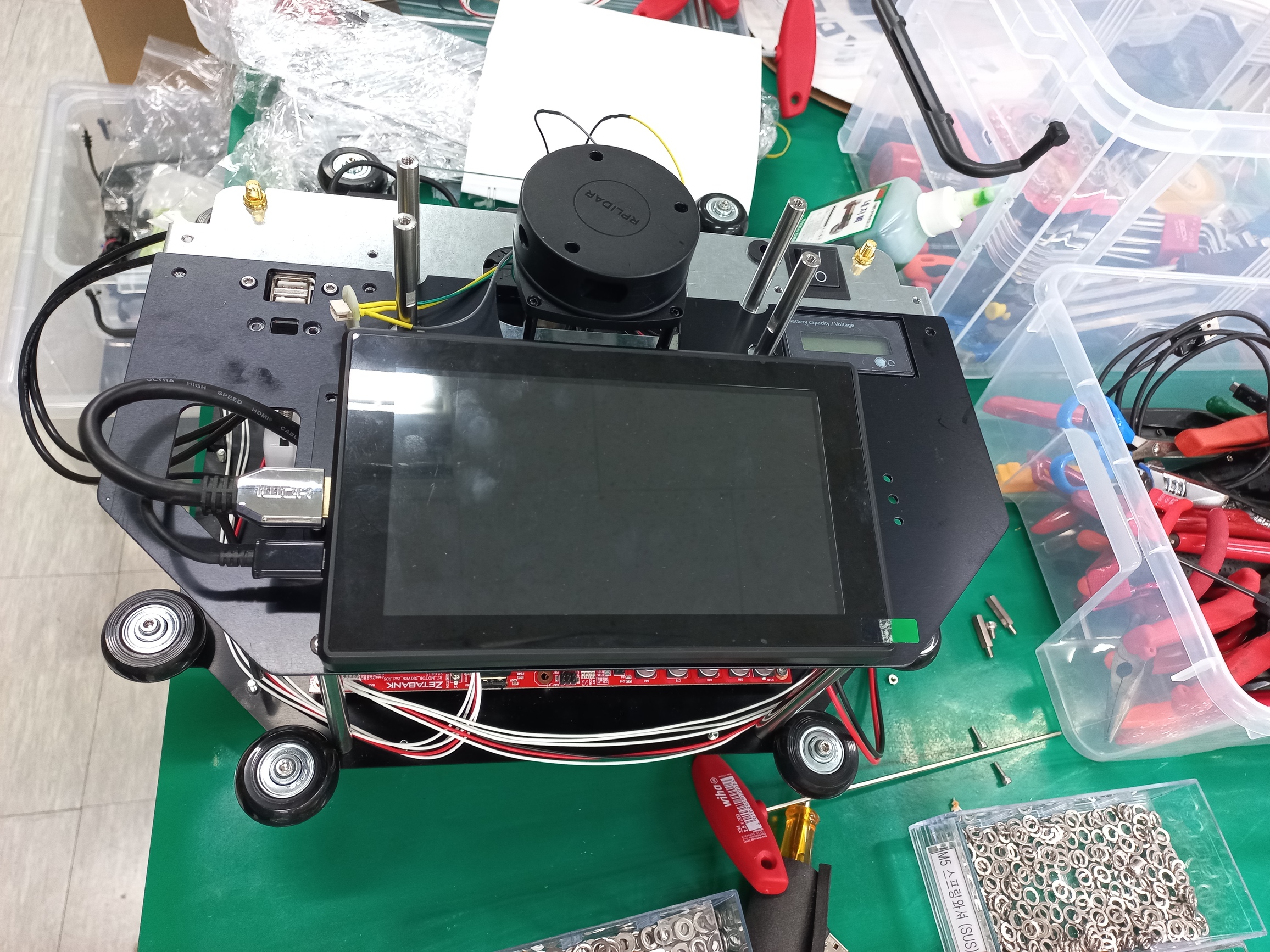

  1. If you combine the side plate here, the Zetabot is completed.
